The Evolution and Future Trends of Multilayer PCBs

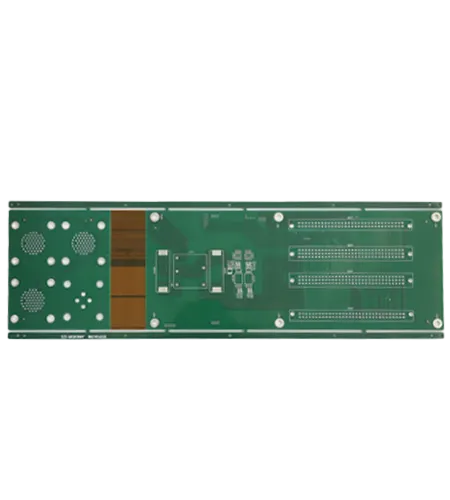

A multilayer pcb consists of multiple layers of conductive material separated by a dielectric layer. The number of layers in a multilayer PCB can vary depending on the complexity of the circuit design and the desired functionality. Provide multi-layer pcb, the number of layers from 2 to more than 50 layers, to meet the different needs of customers. The number of layers of a multilayer PCB is a key factor affecting performance, reliability and cost. Higher layers allow for higher component densities and more complex circuits, enabling the integration of advanced features and functions. More layers also mean increased manufacturing complexity and cost, so it's important to strike a balance between functionality and feasibility.

The lamination and bonding process is the key to the manufacture of multilayer pcb. During the lamination process, the various layers of the PCB are stacked on top of each other. Each layer consists of conductive and dielectric materials and is aligned with the other layers. The pile is then heated and pressurized in a tablet press. Heat and pressure cause the thermosetting resin in the prepreg (dielectric material) to flow, fill the voids, and then cure. This creates a strong, stable bond between the two layers. The bonding process ensures that each layer of the PCB is securely connected to the other layers. It is critical to the overall performance and reliability of multilayer PCBS. SprintPCB's commitment to quality control means that each multi-layer PCB is rigorously tested after lamination and bonding. This ensures that any potential problems can be identified and corrected early in the manufacturing process.

The manufacturing process of multilayer PCBS is a complex and precise process involving several steps,
Design and layout, material selection, inner fabrication, lamination and bonding, drilling, outer production, testing and inspection, welding and screen printing, testing and inspection, final assembly and packaging; The production process of multilayer PCBS involves several complex steps that require expertise and precision. SprintPCB's commitment to excellence at every stage of the manufacturing process has made them a leading brand in the industry. Their advanced technology, material selection and rigorous test procedures result in high quality multi-layer PCBS to meet the diverse needs of customers.

Testing and inspection is the process of multilayer pcb production. When the multi-layer PCB is assembled, it must go through a series of tests to verify its function and reliability. Tests include electrical tests to check for short or open circuits, and functional tests to verify that the PCB is working as expected. In addition to testing, a visual inspection is performed to identify any physical defects that may affect the PCB's performance, including checking for misaligned components, welding Bridges, or any other visible defects. The combination of thorough testing and meticulous inspection ensures that every multilayer PCB produced by SprintPCB meets the highest standards of quality and reliability. This commitment to excellence is what makes SprintPCB stand out in the industry.
