Modern multilayer pcb electronic power

Uncovering complexity: Gain insight into multi-layer PCBS

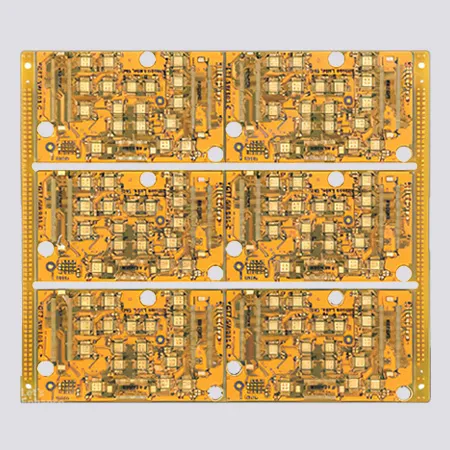

Multilayer printed circuit boards (PCBS) are modern electronic products that design complex, high-density circuits.

1. Number of layers
The defining characteristic of a multi-layer PCB is its number of layers. Ranging from 4 to 40 layers, these PCBS are sandwiched in multiple layers of conductive material separated by insulation to form dense and complex circuits.

2. Material composition
Multilayer PCBS usually use FR-4 glass epoxy resin as the main insulating substrate.

3. Production process
The manufacturing process of multilayer PCBS is complex and involves several steps, including layer alignment, underpressing at high temperatures and pressures, drilling, electroplating and etching.

4. Design considerations
Designing multilayer PCBS requires careful consideration of factors such as signal integrity, impedance control, thermal management, and mechanical stress.

5. Applications
Multilayer PCBS can be found in a variety of applications, from consumer electronics such as smartphones and laptops to industrial equipment and medical devices, due to their ability to support complex circuits in a compact space.

6. Quality and compliance
Quality assurance is crucial in the manufacture of multilayer PCBS. Manufacturers generally comply with IPC standards and ensure RoHS environmental safety.

By understanding these dimensions of multilayer PCBS, one can appreciate the complexity and precision of their design and manufacture.
