Quality Assurance Practices in Multilayer PCB Production

The lamination and bonding process is the key to the manufacture of multilayer pcb. During the lamination process, the various layers of the PCB are stacked on top of each other. Each layer consists of conductive and dielectric materials and is aligned with the other layers. The pile is then heated and pressurized in a tablet press. Heat and pressure cause the thermosetting resin in the prepreg (dielectric material) to flow, fill the voids, and then cure. This creates a strong, stable bond between the two layers. The bonding process ensures that each layer of the PCB is securely connected to the other layers. It is critical to the overall performance and reliability of multilayer PCBS. SprintPCB's commitment to quality control means that each multi-layer PCB is rigorously tested after lamination and bonding. This ensures that any potential problems can be identified and corrected early in the manufacturing process.

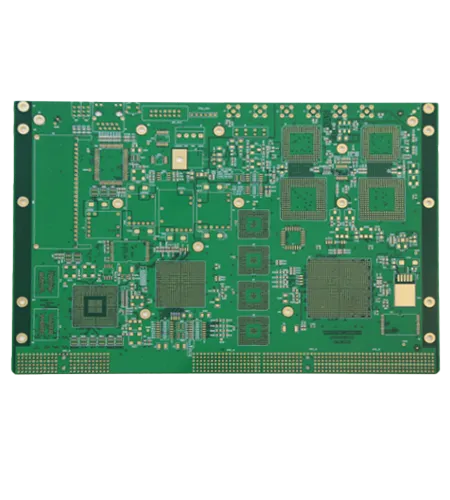

A multilayer pcb consists of multiple layers of conductive material separated by a dielectric layer. The number of layers in a multilayer PCB can vary depending on the complexity of the circuit design and the desired functionality. Provide multi-layer pcb, the number of layers from 2 to more than 50 layers, to meet the different needs of customers. The number of layers of a multilayer PCB is a key factor affecting performance, reliability and cost. Higher layers allow for higher component densities and more complex circuits, enabling the integration of advanced features and functions. More layers also mean increased manufacturing complexity and cost, so it's important to strike a balance between functionality and feasibility.

 The composition of the material plays an important role in determining the performance, reliability and cost of multilayer PCBS. The conductive material used in multilayer PCBS is typically copper and varies in thickness from 0.5 to 2 ounces per square foot. Dielectric materials are used to separate conducting layers and prevent electrical interference, and copper's high conductivity and corrosion resistance become the choice for multilayer PCBS, including FR-4, Rogers, and polyimide, optimized for different applications and environments. SprintPCB uses high-quality materials sourced from reliable suppliers to ensure that its products meet the industry's stringent quality standards.

Designing multi-layer PCBS requires careful consideration of various factors to ensure optimal performance and manufacturability. Design essentials.

Number of layers and stacks:
Determining the appropriate number of layers for a multilayer PCB is critical.

Signal integrity and power integrity:
In multi-layer PCB designs, maintaining signal integrity and power integrity is critical.

Thermal Management:
Efficient thermal management is essential for multilayer PCBS, especially in high-power applications.

Component placement and wiring:
Strategic component placement and thoughtful wiring are critical to achieving an optimized multi-layer PCB design.

Ground and powered aircraft:
SprintPCB understands the importance of correctly designing ground and power planes for multilayer PCBS.

Manufacturing constraints:
Considering manufacturing constraints from the early stages of design is critical to a successful multi-layer PCB.

Testability design:
Emphasize the importance of designing multi-layer pcb for easy testing.

Designing multi-layer PCBS requires careful consideration of various factors to ensure optimal performance and manufacturability.
