The rapid development of electronic devices has become an indispensable part of modern society. At the core of these devices lies an inconspicuous yet crucial printed circuit board (PCB). In order to enhance the functionality, performance, and durability of these PCBs, surface treatment processes play a pivotal role. Among various surface treatment methods, immersion silver technology has emerged as a highly esteemed option due to its unique characteristics and advantages.

immersion silver, as the name suggests, is a process of depositing silver onto the surface of a PCB pad. This method involves displacing copper (Cu) with silver (Ag) on the pad’s surface, resulting in a layer of silver plating, typically with a deposition thickness of 0.15 to 0.25 micrometers.

This microscopically porous structure provides effective protection for PCB pads, enhancing their solderability and ensuring a smooth surface. Compared to other techniques, immersion silver offers significant advantages such as simplicity in process and relatively lower cost.

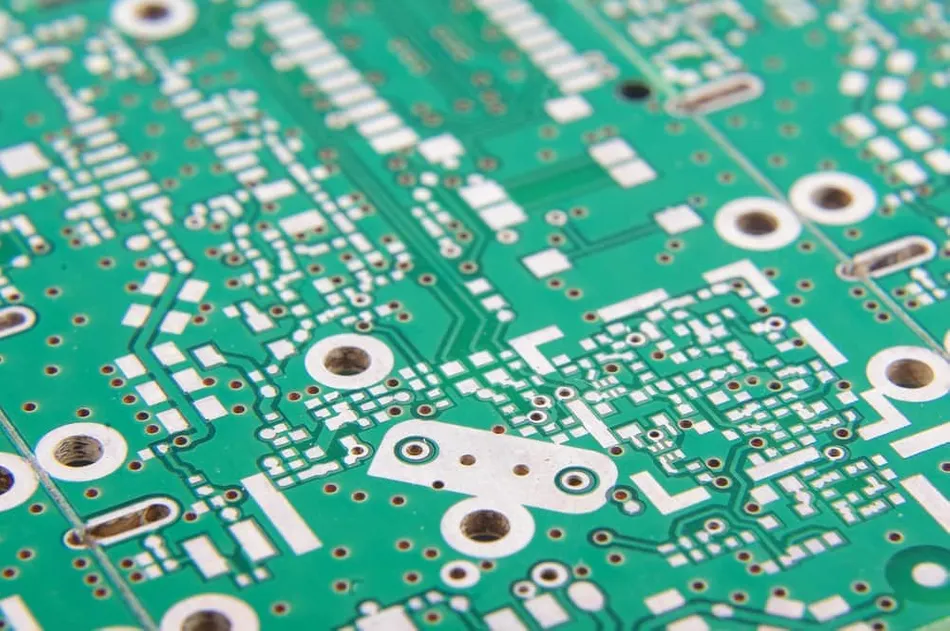

PCB-immersion-sliver

The Scientific Principles of immersion silver

In the process of surface treatment for PCBs, the scientific principles behind the immersion silver technique involve intricate electrochemical processes. This method utilizes current and chemical reactions to deposit silver from a solution onto the surface of PCB pads, creating a uniform and porous silver-plating layer. Let’s delve deeper into this electrochemical mystery.

Basic Principles of Electrochemical Deposition

Electrochemical deposition is a method that involves the reduction of metals from a solution and their deposition onto the surface of an object through controlled electric current. In the PCB immersion silver process, the solder pad serves as the anode (positive electrode), while silver acts as the cathode (negative electrode), with an electric current applied between them. This leads to the reduction of silver ions (Ag⁺) from the solution to metallic silver under the influence of an electric field. The metallic silver then adheres to the surface of the solder pad, gradually forming a silver-plating layer.

Steps of Electrochemical Reactions

The electrochemical deposition of silver involves several key steps in the electrochemical reaction process.

Oxidation Reaction (Anode): On the surface of the solder pad, copper atoms release electrons and oxidize into copper ions (Cu2+). This occurs because the copper on the solder pad’s surface is oxidized into copper ions, which then enter the solution.

2Cu → 2Cu²⁺ + 4e^–

Reduction reaction (cathode): On the surface of the silver cathode, silver ions gain electrons and are reduced to silver atoms, which then adhere to the surface of the solder pad.

2Ag⁺ + 2e^– → 2Ag

Deposition Reaction: This is the most crucial step, where silver atoms adhere to the surface of the solder pad in metallic form, gradually forming a uniform and porous silver-plating layer.

These reactions work together to result in the formation of a silver-plating layer. By controlling parameters such as current density, solution composition, temperature, etc., it is possible to adjust the thickness, uniformity, and porosity of the silver-plating layer, thus achieving the desired performance.

The Enigma of Porous Structures

The porous structure formed by the process of silver sinking is a result of electrochemical reactions and solution dynamics. Under the influence of electric current, silver atoms first deposit on the surface of the solder pad in a locally dense manner, gradually giving rise to pores. These minute pores increase the surface area of the silver plating, facilitating improved adhesion and conductivity.

Simultaneously, this type of porous structure might also lead to issues with the silver plating’s susceptibility to oxidation and solderability, as oxygen and other chemical substances can more easily penetrate the pores and react with the silver.

Advantages of PCB immersion silver process

The appeal of the PCB immersion silver process lies in its numerous advantages.

Simple Process, Efficient Production

The simplicity of the PCB immersion silver process is undoubtedly one of its greatest strengths. Compared to other complex surface treatment methods, such as chemical gold plating (Ni/Au), the PCB immersion silver process is more straightforward and easier to implement. This enables manufacturers to carry out production more efficiently, reduces the complexity of the production workflow, thereby enhancing production efficiency. This high efficiency is particularly crucial in today’s rapidly evolving electronics market, as it can meet the continuously growing market demands.

Protection and Longevity

Reliability and durability of electronic devices are among the core objectives of design and manufacturing. The immersion silver process, by forming a layer of silver plating on the surface of solder pads, provides a robust protective barrier for PCBs. This silver plating effectively blocks the erosion of external moisture, oxides, and other harmful substances, significantly extending the lifespan of the circuit board. This means your electronic devices can operate in more adverse environmental conditions with increased reliability and stability.

Excellent Conductivity

In modern technological society, efficient signal transmission is of paramount importance. The electroplating process with silver demonstrates significant advantages in this regard, as silver itself is an excellent conductor of electricity. By depositing silver onto the surface of solder pads, the conductivity of circuit boards is enhanced, ensuring the transmission speed and stability of signals. This is particularly crucial in high-speed data transmission and communication devices, contributing to the improvement of device performance.

Perfect Solderability

An exceptional electronic device requires not only outstanding performance but also ease of manufacturing and maintenance. Once again, the PCB immersion silver process stands out in this regard, as it can provide excellent solderability. Soldering is a crucial aspect of electronic manufacturing, and the PCB immersion silver process makes soldering easier and more reliable. The soldering contact surfaces are more stable, the soldering process is smoother, thereby enhancing assembly and repair efficiency.

Sustainable Cost Efficiency

In the manufacturing industry, cost is always an undeniable factor. The electroless silver plating process offers manufacturers an economically efficient surface treatment option due to its relatively low cost. Compared to some expensive surface treatment methods like electroplating with gold, the electroless silver plating process is able to maintain excellent performance and reliability while reducing costs.

Drawbacks of the PCB immersion silver process

While the PCB immersion silver process shines with numerous advantages, it also reveals some drawbacks in the subtle interplay, which serve as both cautionary reminders and ignite the passion for scientific exploration.

Oxidation Susceptibility and Appearance Issues

The high electrical conductivity and thermal conductivity of silver are well-known advantages, but they come with the accompanying characteristic of susceptibility to oxidation. Especially in environments with high humidity and the presence of halides or sulfides, silver plating is prone to oxidation, resulting in a gradual yellowing or darkening of the solder pad surface.

This not only affects the appearance of the circuit board but may also impact signal transmission and circuit performance, posing potential risks to high-end electronic devices.

Solderability Issues

Although the PCB immersion silver process offers good solderability, poor solderability may occur after multiple soldering cycles. This could be due to interactions between silver and solder during the soldering process. Subpar solderability could lead to decreased soldering quality, affecting the stability and reliability of electronic devices.

Giovanni Phenomenon

When using the immersion silver process on printed circuit boards (PCBs) with solder resist, there may be a phenomenon known as the “Giovanni Phenomenon,” which can lead to improper control resulting in circuit shorts. Multiple soldering cycles can also lead to poor solderability.

This phenomenon refers to the diffusion and reaction of copper beneath the immersion silver with the silver above in high-temperature environments due to solder resist material entering micro-holes and micro-cracks after the immersion silver process. This reaction forms gold-silver compounds, subsequently causing circuit short issues. Therefore, when selecting a surface treatment process, the pros and cons need to be carefully weighed based on the specific circumstances.

Environmental Impact

Silver is a finite resource, and its extraction and utilization exerts a certain amount of pressure on the environment. Additionally, the chemical substances used in certain processes might have adverse effects on the environment. Therefore, when employing silver plating techniques, it’s important to consider environmental concerns and actively seek sustainable development solutions.

immersion silver technology, as an important PCB surface treatment method, has both numerous advantages and some challenges. In practical applications, it is necessary to take into account its cost, solderability, and its impact on the appearance. Understanding the scientific principles behind the PCB immersion silver process helps to better comprehend its strengths and weaknesses, providing stronger support for the design and production of electronic devices.
